# tf_geo_rasterize_slope

Similar to

`tf_geo_rasterize`

, but also computes the slope and aspect per output bin.
Aggregates point data into x/y bins of a given size in meters to form a dense spatial grid, computing the specified aggregate (using `agg_type`

) across all points in each bin as the output value for the bin. A Gaussian average is then taken over the neighboring bins, with the number of bins specified by `neighborhood_fill_radius`

, optionally only filling in null-valued bins if `fill_only_nulls`

is set to true. The slope and aspect is then computed for every bin, based on the z values of that bin and its neighboring bins. The slope can be returned in degrees or as a fraction between 0 and 1, depending on the boolean argument to `compute_slope_in_degrees`

.Note that the bounds of the spatial output grid will be bounded by the x/y range of the input query, and if SQL filters are applied on the output of the

`tf_geo_rasterize_slope`

table function, these filters will also constrain the output range.SELECT * FROM TABLE(

tf_geo_rasterize_slope(

raster => CURSOR(

SELECT

x, y, z FROM table

),

agg_type => <'AVG'|'COUNT'|'SUM'|'MIN'|'MAX'>,

bin_dim_meters => <meters>,

geographic_coords => <true/false>,

neighborhood_fill_radius => <radius in bins>,

fill_only_nulls => <true/false>,

compute_slope_in_degrees => <true/false>

)

)

Parameter | Description | Data Types |
---|---|---|

`x` | Input x-coordinate column or expression. | Column<FLOAT | DOUBLE> |

`y` | Input y-coordinate column or expression. | Column<FLOAT | DOUBLE> |

`z` | Input z-coordinate column or expression. The output bin is computed as the maximum z-value for all points falling in each bin. | Column<FLOAT | DOUBLE> |

`agg_type` | The aggregate to be performed to compute the output z-column. Should be one of `'AVG'` , `'COUNT'` , `'SUM',` `'MIN'` , or `'MAX'.` | TEXT ENCODING NONE |

`bin_dim_meters` | The width and height of each x/y bin in meters. If `geographic_coords` is not set to true, the input x/y units are already assumed to be in meters. | DOUBLE |

`geographic_coords` | If true, specifies that the input x/y coordinates are in lon/lat degrees. The function will then compute a mapping of degrees to meters based on the center coordinate between x_min/x_max and y_min/y_max. | BOOLEAN |

`neighborhood_fill_radius` | The radius in bins to compute the box blur/filter over, such that each output bin will be the average value of all bins within `neighborhood_fill_radius` bins. | BIGINT |

`fill_only_nulls` | Specifies that the box blur should only be used to provide output values for null output bins (i.e. bins that contained no data points or had only data points with null Z-values). | BOOLEAN |

`compute_slope_in_degrees` | If true, specifies the slope should be computed in degrees (with 0 degrees perfectly flat and 90 degrees perfectly vertical). If false, specifies the slope should be computed as a fraction from 0 (flat) to 1 (vertical). In a future release, we are planning to move the default output to percentage slope. | BOOLEAN |

Name | Description | Data Types |
---|---|---|

x | The x-coordinates for the centroids of the output spatial bins. | Column<FLOAT | DOUBLE> (same as input x column/expression) |

y | The y-coordinates for the centroids of the output spatial bins. | Column<FLOAT | DOUBLE> (same as input y column/expression) |

z | The maximum z-coordinate of all input data assigned to a given spatial bin. | Column<FLOAT | DOUBLE> (same as input z column/expression) |

slope | The average slope of an output grid cell (in degrees or a fraction between 0 and 1, depending on the argument to `compute_slope_in_degrees` ). | Column<FLOAT | DOUBLE> (same as input z column/expression) |

aspect | The direction from 0 to 360 degrees pointing towards the maximum downhill gradient, with 0 degrees being due north and moving clockwise from N (0°) -> NE (45°) -> E (90°) -> SE (135°) -> S (180°) -> SW (225°) -> W (270°) -> NW (315°). | Column<FLOAT | DOUBLE> (same as input z column/expression) |

**Example**

/* Compute the slope and aspect ratio for a 30-meter Copernicus

Digital Elevation Model (DEM) raster, binned to 90-meters */

select

*

from

table(

tf_geo_rasterize_slope(

raster => cursor(

select

st_x(raster_point),

st_y(raster_point),

CAST(z AS float)

from

copernicus_30m_mt_everest

),

agg_type => 'AVG',

bin_dim_meters => 90.0,

geographic_coords => true,

neighborhood_fill_radius => 1,

fill_only_nulls => false,

compute_slope_in_degrees => true

)

)

order by

slope desc nulls last

limit

20;

x|y|z|slope|aspect

86.96533511629579|27.96534132281817|6212.096|78.37033|18.09232

87.23751907091268|27.78489838800869|3793.584|78.17864|125.03

87.23660262662104|27.78408922686605|3929.989|78.06877|127.629

86.96625156058742|27.96534132281817|6041.277|78.00574|19.00616

87.2356861823294|27.78328006572341|3981.662|77.53327|127.3175

86.96441867200414|27.96615048396082|5869.373|77.3751|20.82031

86.95800356196267|27.96857796738875|6083.791|77.13709|29.89468

86.96350222771251|27.96615048396082|6081.35|77.08266|21.6792

87.23843551520432|27.78570754915134|3630.32|77.04676|125.2154

86.96441867200414|27.96534132281817|6378.94|76.95021|17.77107

87.22468885082972|27.81321902800121|4771.554|76.71017|253.2764

87.2356861823294|27.78247090458076|3520.049|76.63997|113.6511

87.23660262662104|27.78328006572341|3445.282|76.38319|127.2889

86.96716800487906|27.96534132281817|5864.711|76.16835|19.27573

87.23476973803776|27.78166174343812|3945.683|76.13519|102.7789

86.95708711767104|27.96857796738875|6336.072|76.13168|24.90349

87.22468885082972|27.81240986685857|4732.937|76.07494|264.7046

87.23751907091268|27.78408922686605|3367.659|76.0099|126.7463

86.9589200062543|27.9677688062461|6223.083|75.46346|26.85898

87.22377240653809|27.81402818914385|4704.619|75.41299|205.3219

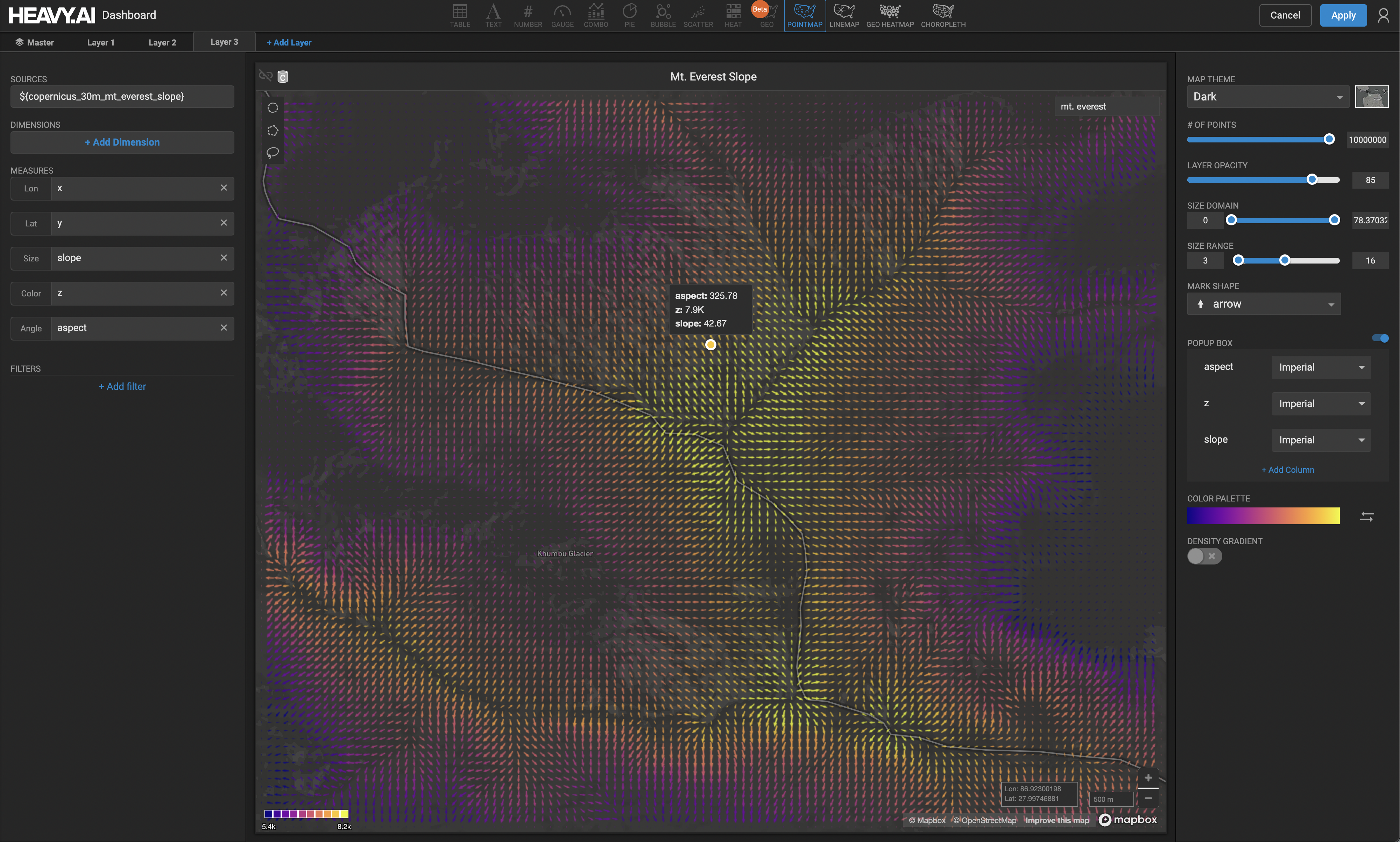

Inline generation of slope-field using the above example query, showing the computed slopes over 90-meter binned Copernicus 30m DEM data. Note that this can be done in Immerse using a custom source, and optionally parametrized if desired. The direction of the slope (aspect) is indicated by the direction of the arrows.
