Geo Heatmap

The Geo Heatmap displays aggregate values by geographic location.

Features

Quantity

Notes

Required Dimensions

2

Requires longitude and latitude, or POINT defined by longitude and latitude. OmniSci stores POINT data as longitude first, and then latitude.

Required Measures

1

Color.

The Geo Heatmap lets you visually compare information by region.

Geo Heatmap Examples

Create a new Geo Heatmap. This example uses the 1 Million Row NYC Taxi database as the Data Source. Set the dimensions to dropoff_longitude and dropoff_latitude. Set the measure to AVG fare_amount.

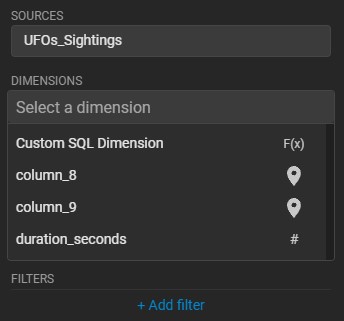

NOTE: You can also use POINT data (generated from longitude/latitude) for LON and LAT; for example, column_9 contains point data:

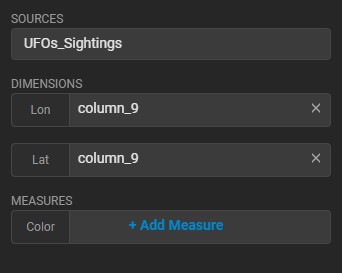

When you select data of type POINT, Lon and Lat are both populated with the values for the point data:

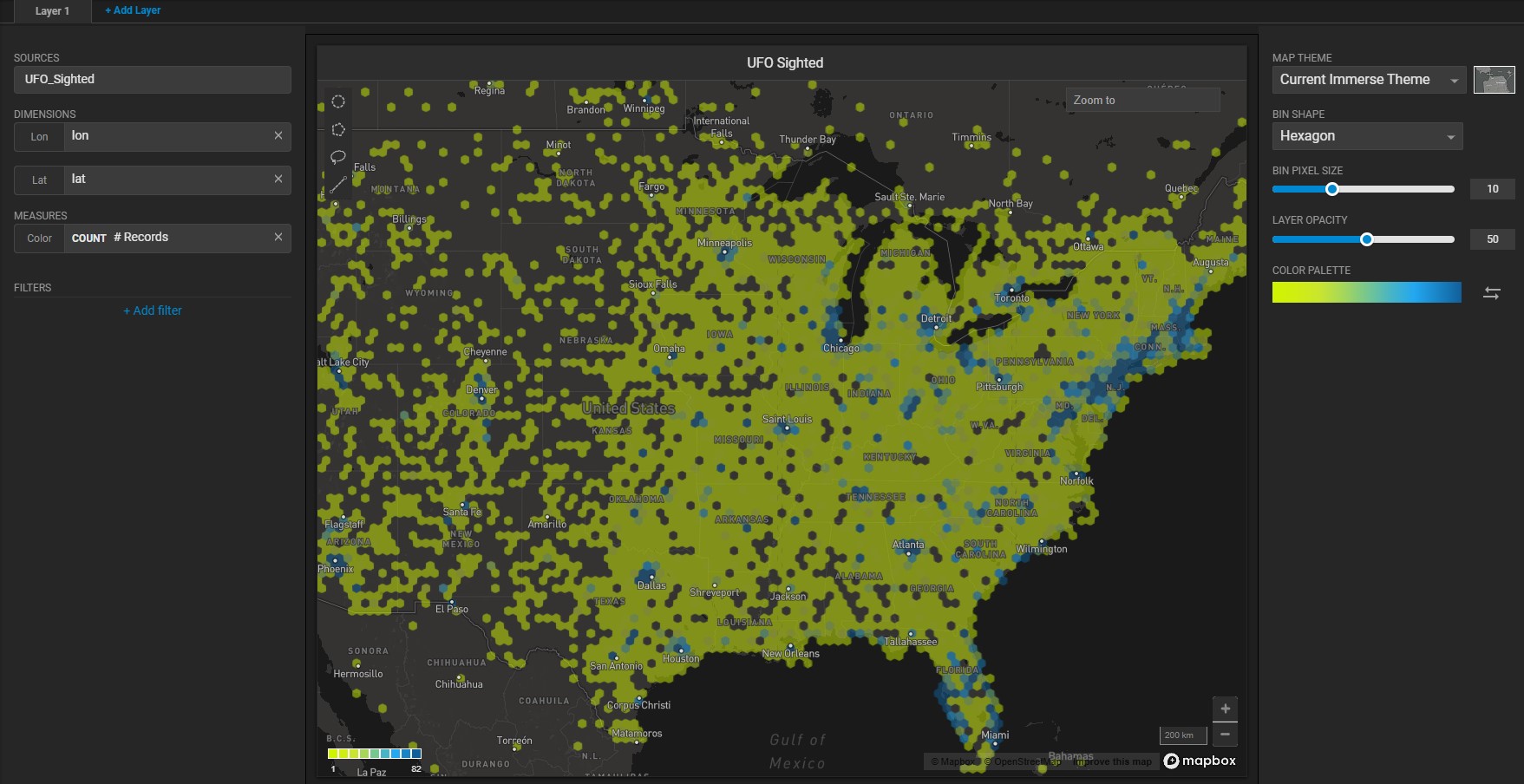

Changing the Map Theme from Light to Streets improves the contrast for the street names.

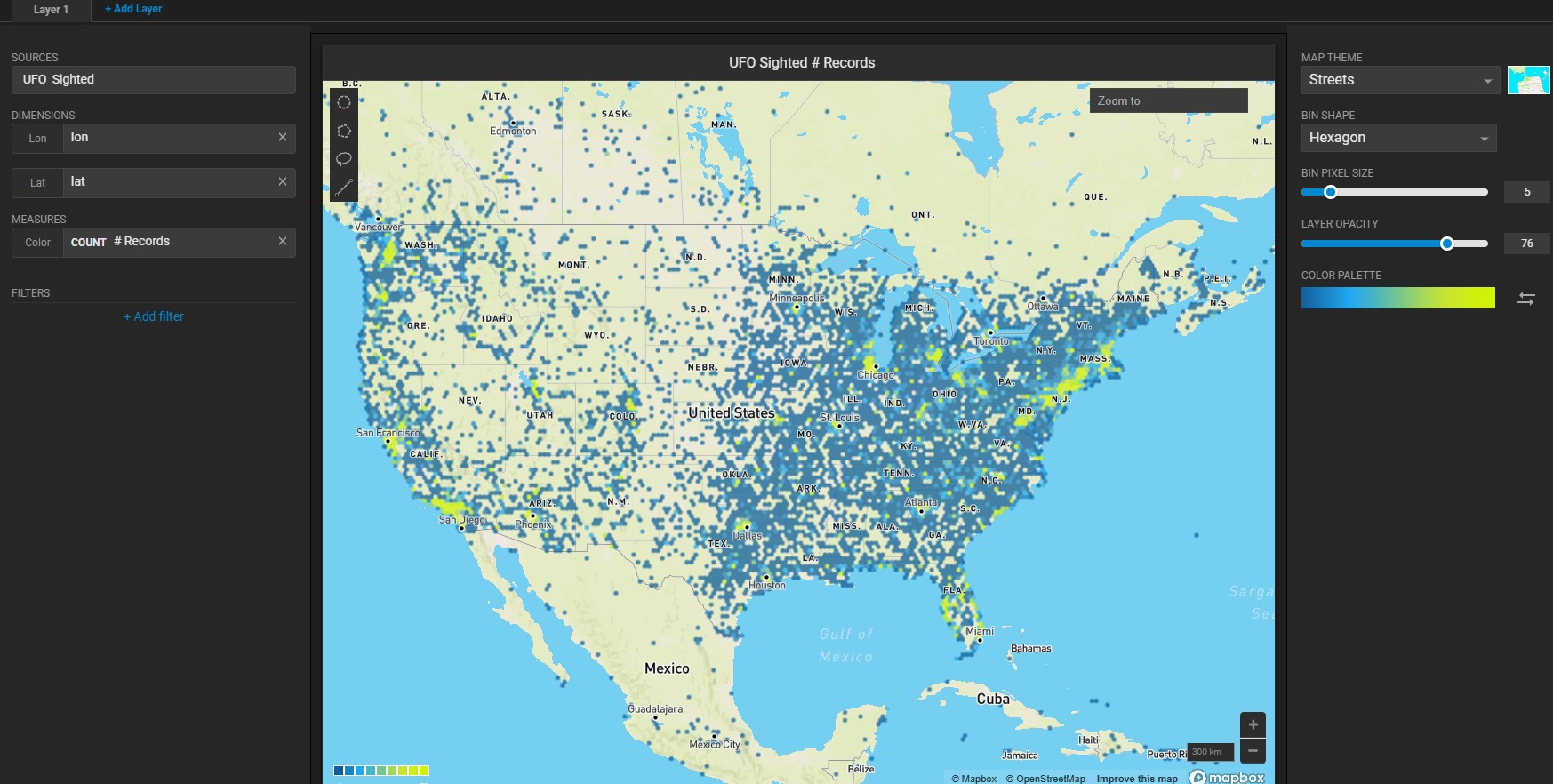

The values displayed on the Geo Heatmap are binned aggregate values. You can choose to display the Bin Shape as hexagons or as squares. You can adjust the Bin Pixel Size of the markers to a smaller size to increase the granularity of the Geo Heatmap.

You can set the Color Palette to tell a more effective story with your data. In this example, setting the palette to gradations of blue helps to distinguish between the trees in Central Park versus the fare values.

Multi-layer Geospatial Maps

Pointmap and Geo Heatmap charts can be layered on top of one another to allow visual comparison of datasets. See Creating Multi-layer Geospatial Charts.

Zoom

You can zoom in and out of a Geo Heatmap chart in the following ways:

  • Using the mouse scrolling wheel.

  • Selecting an area by holding down the Shift key and using the mouse to select the zoom area.

  • Using the Zoom To box in the upper right of the map:

    • Type the name of a geographic location (address, city, state, or country) and optional zoom level. For example, Denver, CO, !8 zooms to Denver, Colorado, with a zoom level of 8.

    • Enter latitude and longitude coordinates, and optional zoom level. For example, 39.26911, -76.54068, !9 takes you to Baltimore, MD, at zoom level 9.
