# Line

The Line chart represents a series of data as a line or multiple lines, plotted across time or another numerical dimension.

| Features                                                                     | Quantity | Notes                                      |
| ---------------------------------------------------------------------------- | -------- | ------------------------------------------ |
| Required [Dimensions](/v8.3.0/immerse/measures-and-dimensions.md#dimensions) | 1-2      | Dimension 1 = X Axis, Dimension 2 = Series |
| Required [Measures](/v8.3.0/immerse/measures-and-dimensions.md#measures)     | 1        | Measure 1 = Y Axis.                        |

The optional multi-series capability of the Line chart can break out values by an additional dimension.

## Line Chart Examples

Create a new Line chart. Choose a **Data Source**. This example uses the official database of [UFO sightings](https://github.com/planetsig/ufo-reports/tree/master/csv-data)

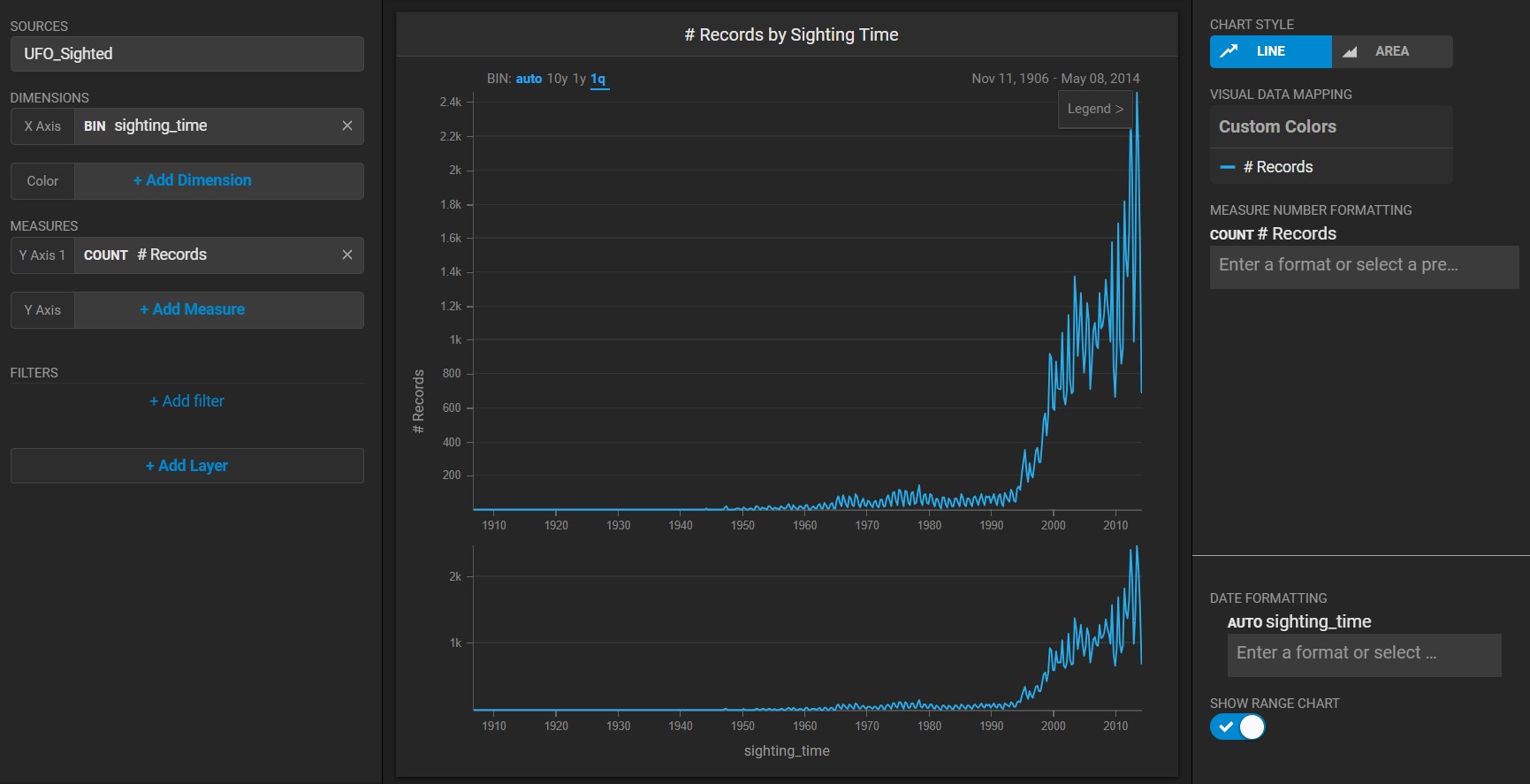

Categorize UFO sightings on the **Dimension** *sighting\_time* and set the **Measure** to the number of records (the number of sightings).

<figure><img src="/files/08ZBGOqfpsGbuNYSgKLg" alt=""><figcaption></figcaption></figure>

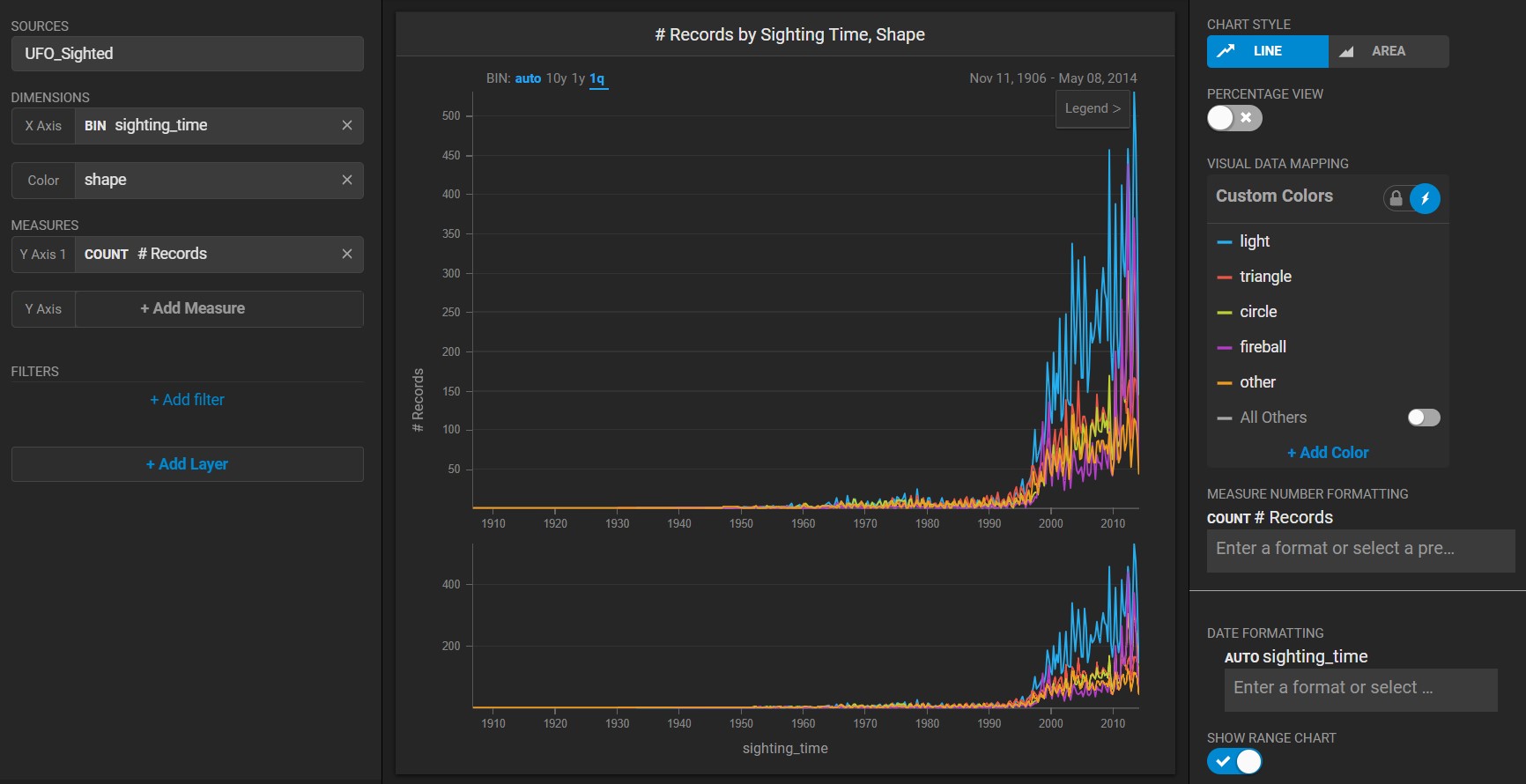

Adding the **Dimension** *shape* displays a separate line for each sighting type across time.

<figure><img src="/files/ucEfCvMLkAfx6lk0sEK0" alt=""><figcaption></figcaption></figure>

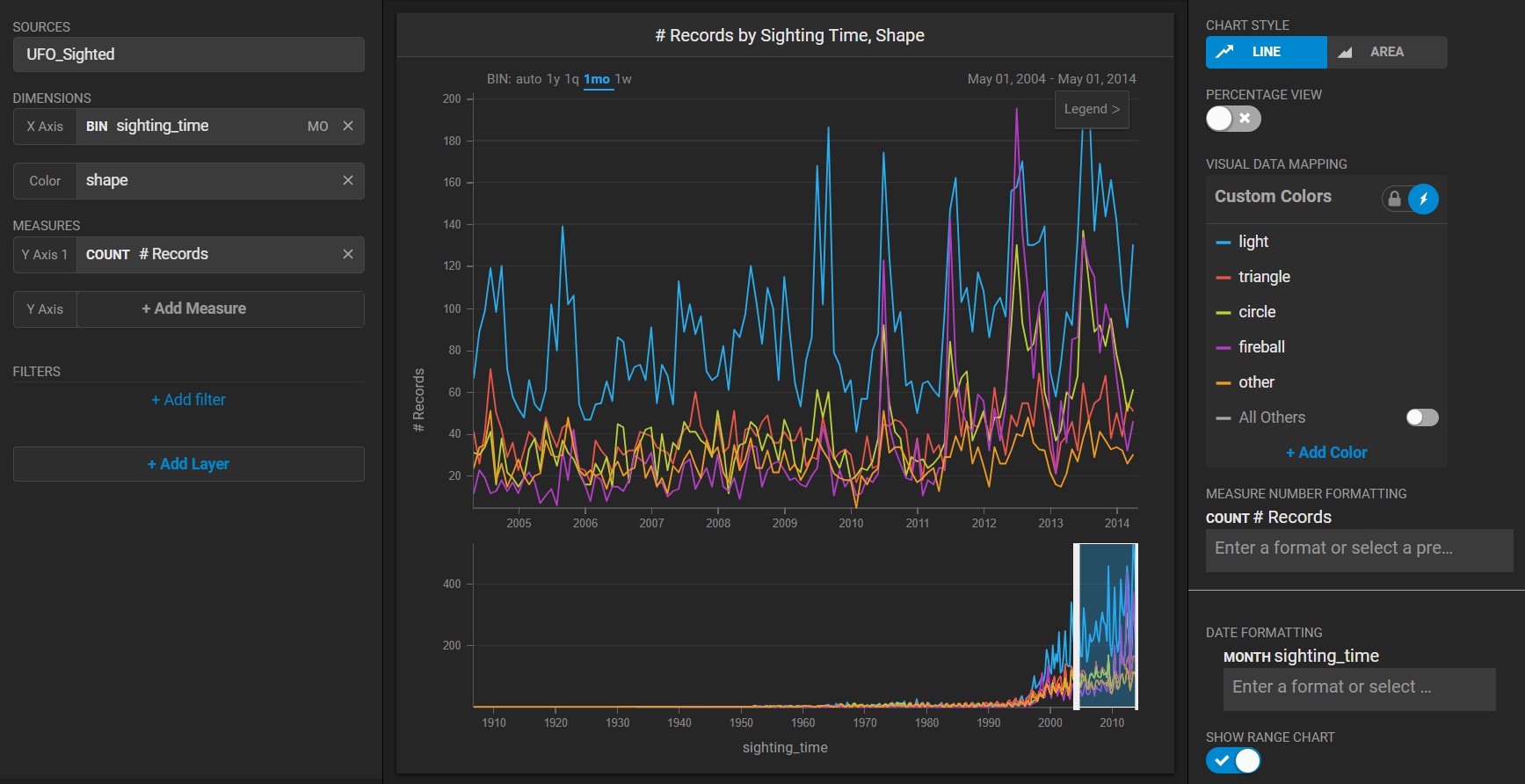

The records go back to 1905, with very few recorded sightings. Selecting a more recent 10-year block presents information in a more digestible form. For an ad hoc report, you can brush across values in the Range Chart to filter a smaller number of data points, or you can enter start and end dates on the x axis for precise values.

<figure><img src="/files/GKwNhIQnlAkUGtHefpMF" alt=""><figcaption></figcaption></figure>

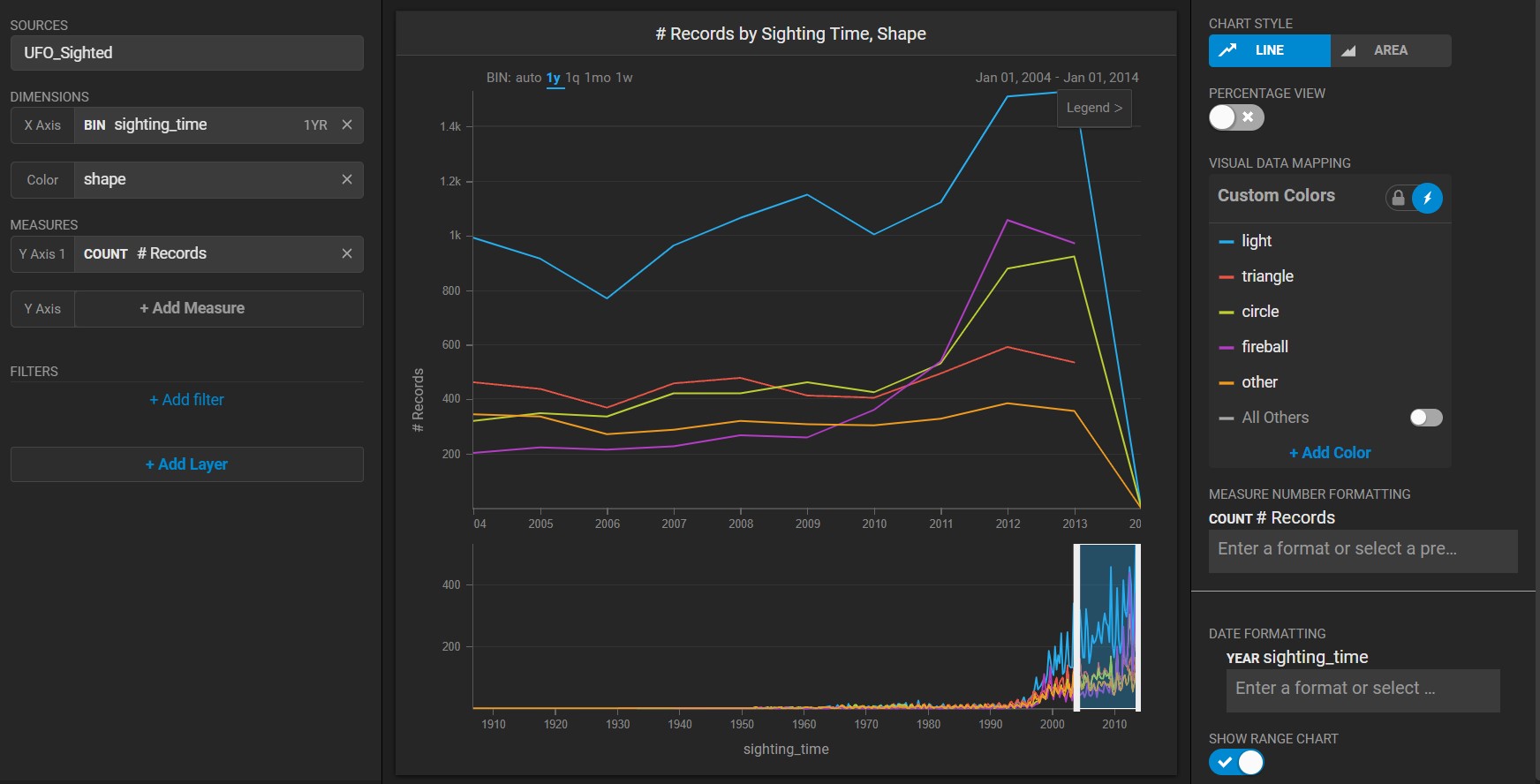

When you set the x axis to a date/time value, you have the option of setting the intervals to month, quarter, or year. Setting the **BIN** to **1y** can make the values easier to discern.

<figure><img src="/files/d2F7tT1hNeLtFR8vFnVl" alt=""><figcaption></figcaption></figure>

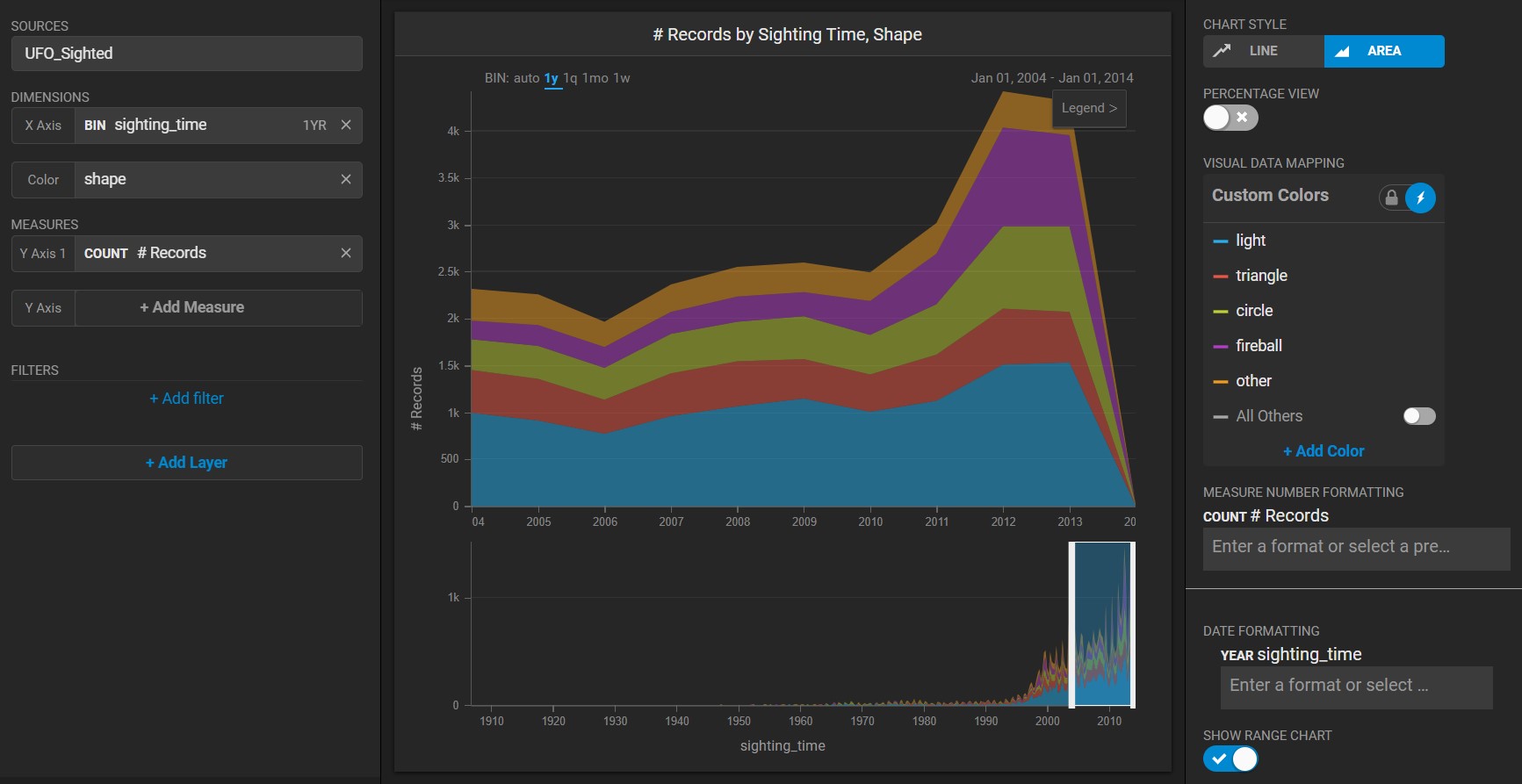

You can change from a line chart to an area chart, adding more contrast to make the differences between the values more apparent.

<figure><img src="/files/WFBAFzs9uLuQi8TKYySo" alt=""><figcaption></figcaption></figure>

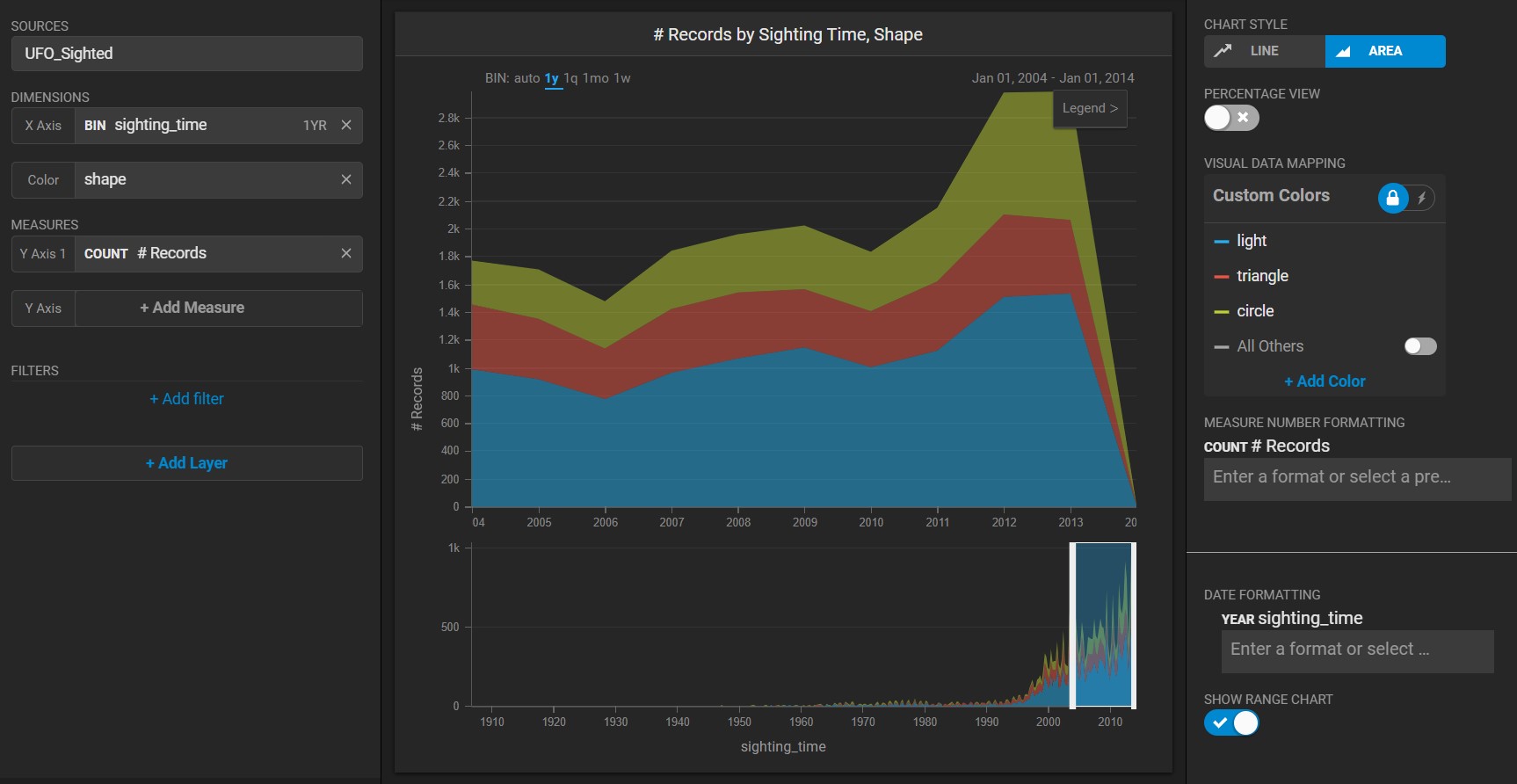

You can also reduce the number of series displayed by removing their entries from the **COLOR PALETTE**.

<figure><img src="/files/zJLPJWJMUmrodgUJDGNa" alt=""><figcaption></figcaption></figure>

After you reduce the scope of the chart, you can change the labels on the axes and the chart title to reflect the current state of the information.

<figure><img src="/files/pd5jlOMDKCwQZdYBjobq" alt=""><figcaption></figcaption></figure>


---
